ISINAC Parallelepiped Acoustic Panel

High-Performance Sound Absorption and 3D Design

The ISINAC Parallelepiped Acoustic Panel is a professional solution for improving room acoustics and reducing reverberation.

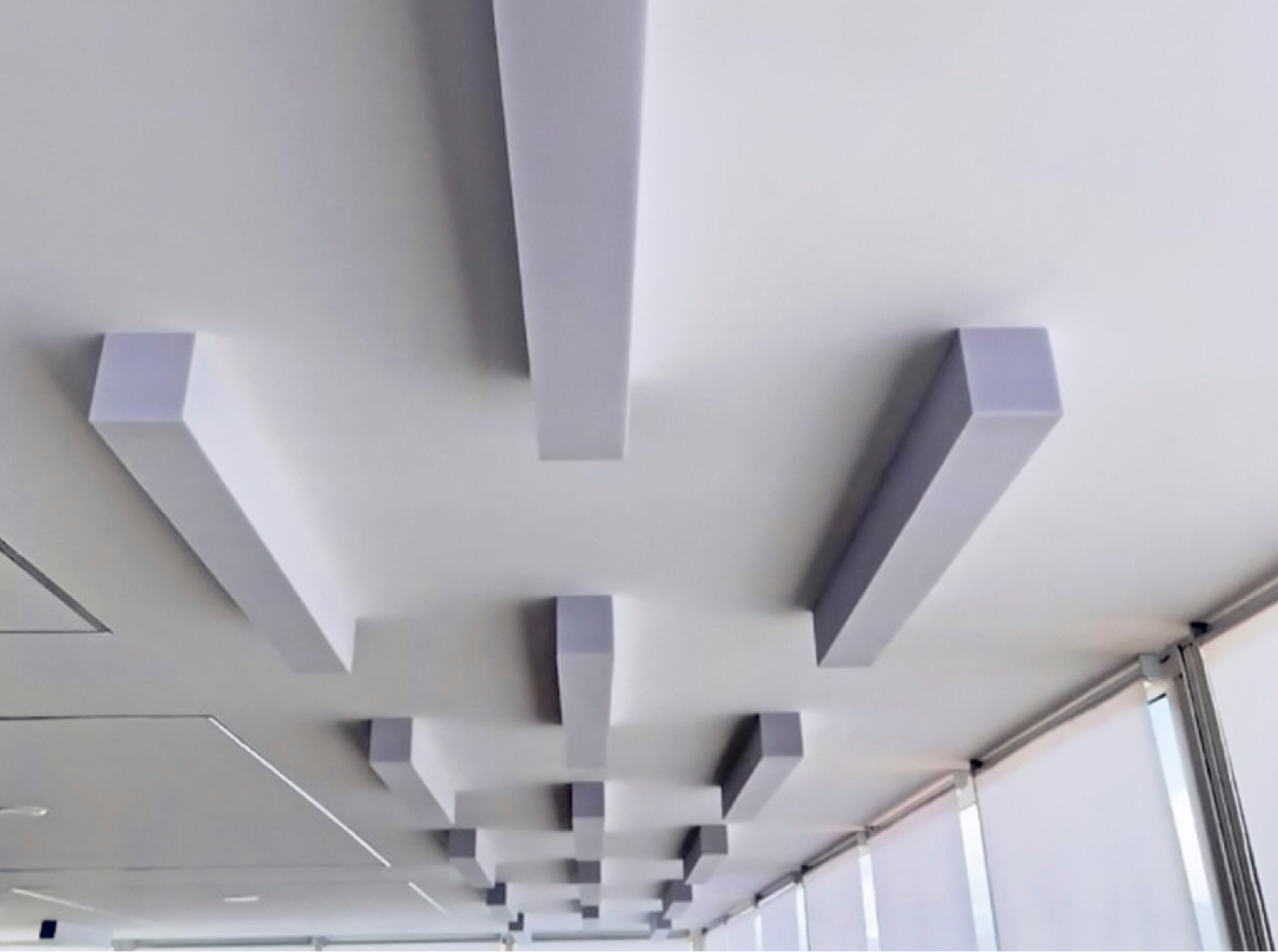

Its three-dimensional geometric shape allows the creation of modern ceiling acoustic compositions, combining high sound absorption performance with architectural design. The panels can be installed directly or suspended from the ceiling.

Suitable for offices, hotels, restaurants, educational facilities, public and commercial spaces.

Improved Acoustics and Comfort

ISINAC acoustic panels absorb unwanted sound reflections and contribute to:

reduced reverberation;
improved speech intelligibility;
enhanced acoustic comfort;
effective control of sound reflections.

Design and Customisation

The panels are made of grey or white mineral foam and are available with ILUCS or IZZER fabric finishes.

A wide range of colours allows individual cylinders to be combined into customised acoustic compositions. ILUCS also offers customisation with a logo, image or specific Pantone colour.

Applications

• Offices
• restaurants
• Hotels
• theatres
• recording studios
• public spaces
• commercial spaces

The right acoustic solution depends on the size, purpose and acoustic characteristics of the space.

Contact us for assistance in selecting the appropriate size, thickness, quantity and installation method for ISINAC Parallelepiped Acoustic Panels and to receive a customised quotation.

  • Technical Specifications

  • Type

    3D parallelepiped sound-absorbing acoustic panel

  • Application

    Ceiling

  • Core material

    Grey or white mineral acoustic foam

  • Thicknesses:

    100 / 200 / 250 mm

  • Sound absorption range

    100–5000 Hz

  • Fabric finishes

    ILUCS / IZZER

  • Installation

    Self-adhesive / suspended

  • Reaction to fire (Euroclass):

    Mineral foam: C-s2,d0
    ILUCS: B-s1,d0
    IZZER: C-s1,d0

  • Standard sizes:

    100 × 1220 mm
    150 × 1220 mm

  • Downloads

    ADH ABSORBATION DATA SHEET3D HANGING FOAM PANEL3D HANDING PANELIZZER - colorsILUCS - colors
