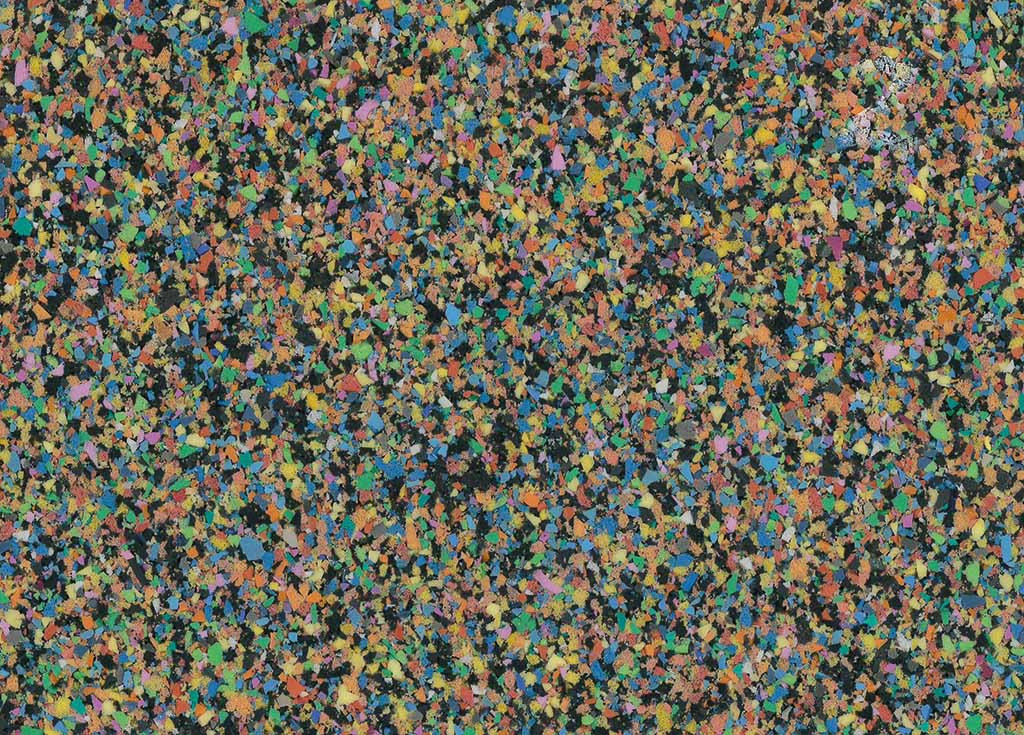

DAMTEC® vibra 100 is an elastic layer with vibration-damping and impact sound-insulating properties for use in structural and civil engineering. The ideal area of application is with a material pressure of up to 0.10 N/mm². Depending on the requirements, DAMTEC® vibra 100 can be laid in one or more layers.
multicoloured
1,250 mm (± 1.5 %)
15, 20, 30 mm (± 1 mm)
0.15 - 0.70 N/mm² (ISO 1798)
35 - 75 % (ISO 1798)
330 - 430 kg/m³
0.10 N/mm² (in acc. to EN 826)
9 - 25 Hz
