DAMTEC® Multi is suitable for use on floors, walls and ceilings.
It is effective both under the cement screed and above it, directly under hard or soft floor coverings, such as natural parquet, laminate, tiles, carpets and others.

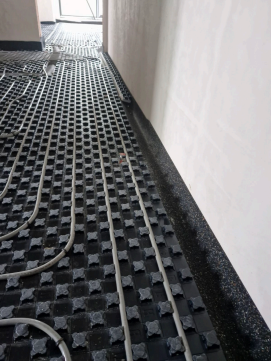

Thanks to its excellent thermal conductivity, DAMTEC® Multi is ideal for use with underfloor heating systems.
Also effective when installed in combination with plasterboard panels, preventing airborne noise.
It perfectly replaces XPS or stone wool boards between double walls, gaining space and again stopping the passage of airborne noise.
It provides excellent sound insulation at a minimum thickness, making it suitable for projects with limited spaces or floor heights.
DAMTEC MULTI under wooden flooring (parquet / laminate)
DAMTEC MULTI under cement screed
DAMTEC MULTI under ceramic flooring
DAMTEC® sonic brochure
Concrete Slab 200mm - DAMTEC Multi - Cement screed (60mm) : 71 dB
Concrete Slab 200mm-Cement screed (60mm)-DAMTEC Multi - parquet/laminate : 63dB
Plaster-brick wall - DAMTEC Multi - KNAUF W623 with acoustic hangers : 57 dB
Plaster-brick wall - DAMTEC Multi - brick wall - plaster : 50 dB
from 500 kPa to 5000 kPa
970kg/m3
-30°C to 80°C
from 2mm to 12mm
100% recycled materials, harmless to human health.
Low – suitable for indoor use (certified by AgBB/
EMICODE)
Germany
Manufacturer: KRAIBURG Relastec GmbH & Co. KG

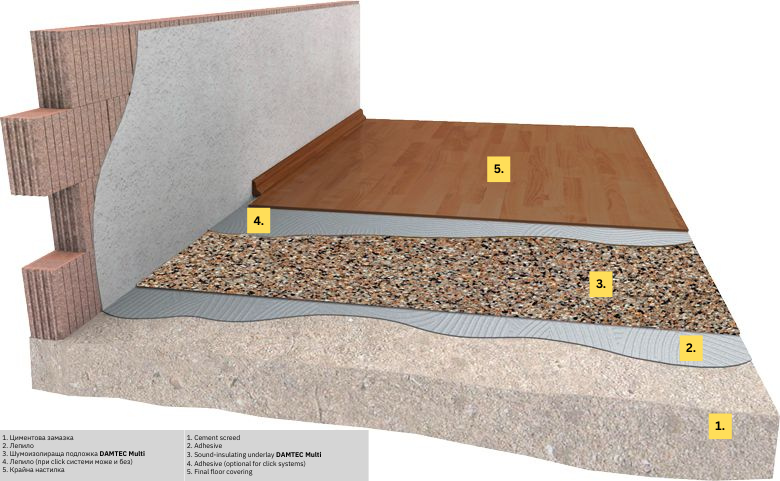

Damtec Multi as elastic acoustic underlay for wooden flooring:
1. Cement Screed
2. Adhesive
3. Sound-insulating underlay DAMTEC Multi
4. Adhesive (optional for click systems)
5. Final floor covering

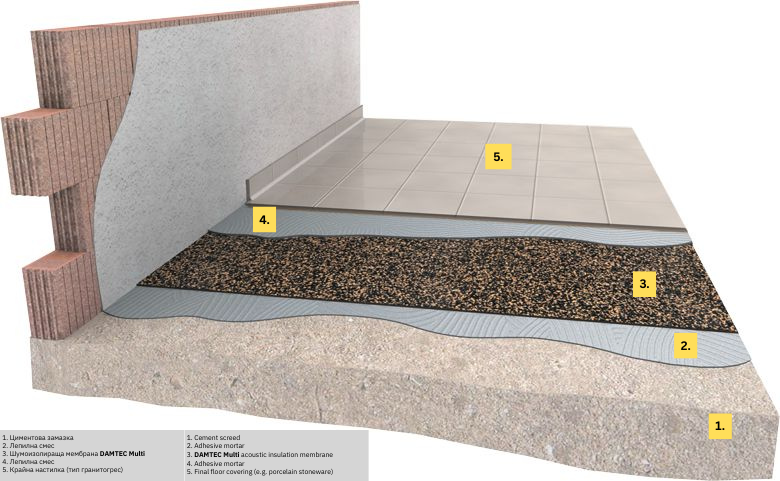

Damtec Multi acoustic membrane under ceramic floor coverings:
1. Cement Screed
2. Adhesive mortar
3. DAMTEC Multi acoustic insulation membrane
4. Adhesive mortar
5. Final floor covering (e.g. porcelain stoneware)

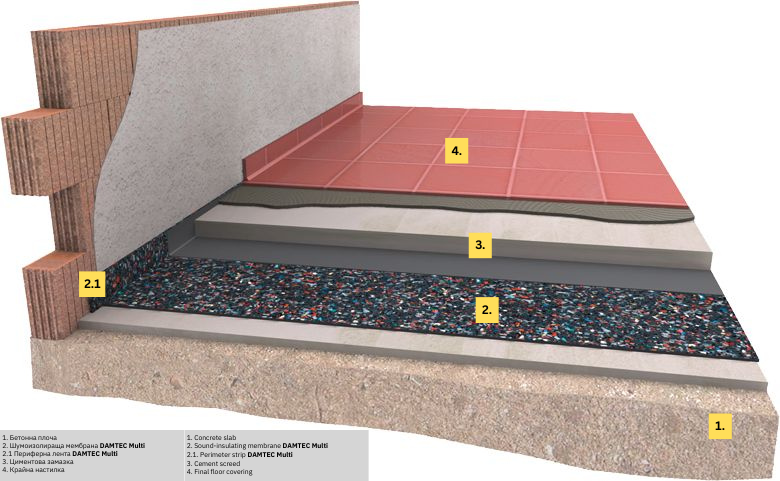

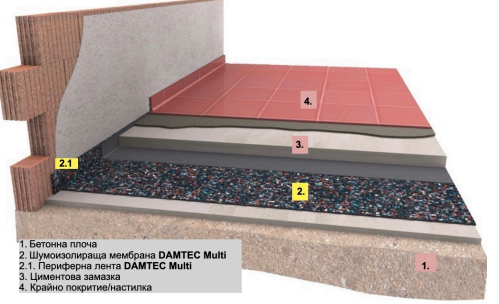

Damtec Multi sound-insulating layer for installation under cement screed:
1. Concrete slab
2. Sound-insulating membrane DAMTEC Multi
2.1 Perimeter strip DAMTEC Multi
3. Cement screed
5. Final floor covering
